TE Modes

For the computation of spherical modes, for reasons of efficiency and implementation, it is recommended to use a vector Vector{SVector{3,T}} and calculate (lmax+1)^2 modes directly.

With lmax = 6 you have 49 TE modes.

lmax = 6
R = 1
name = "../Assets/mesh/sphregion.msh"
#sphregion_mesh(R, dl = 0.75e-1, name = name)

coord, conn = mesh_data(name)
coords = coord[:, 1:maximum(conn)]
xcoords = coords[1, :]
ycoords = coords[2, :]
zcoords = coords[3, :]
#r_vec = [SVector(v...) for v in eachcol(coords)]
r_vec = to_svector3(xcoords, ycoords, zcoords)

incident = false
myfields = te_sph_fields_lmax(r_vec, lmax, 10e9, 1.0, 1.0, incident)

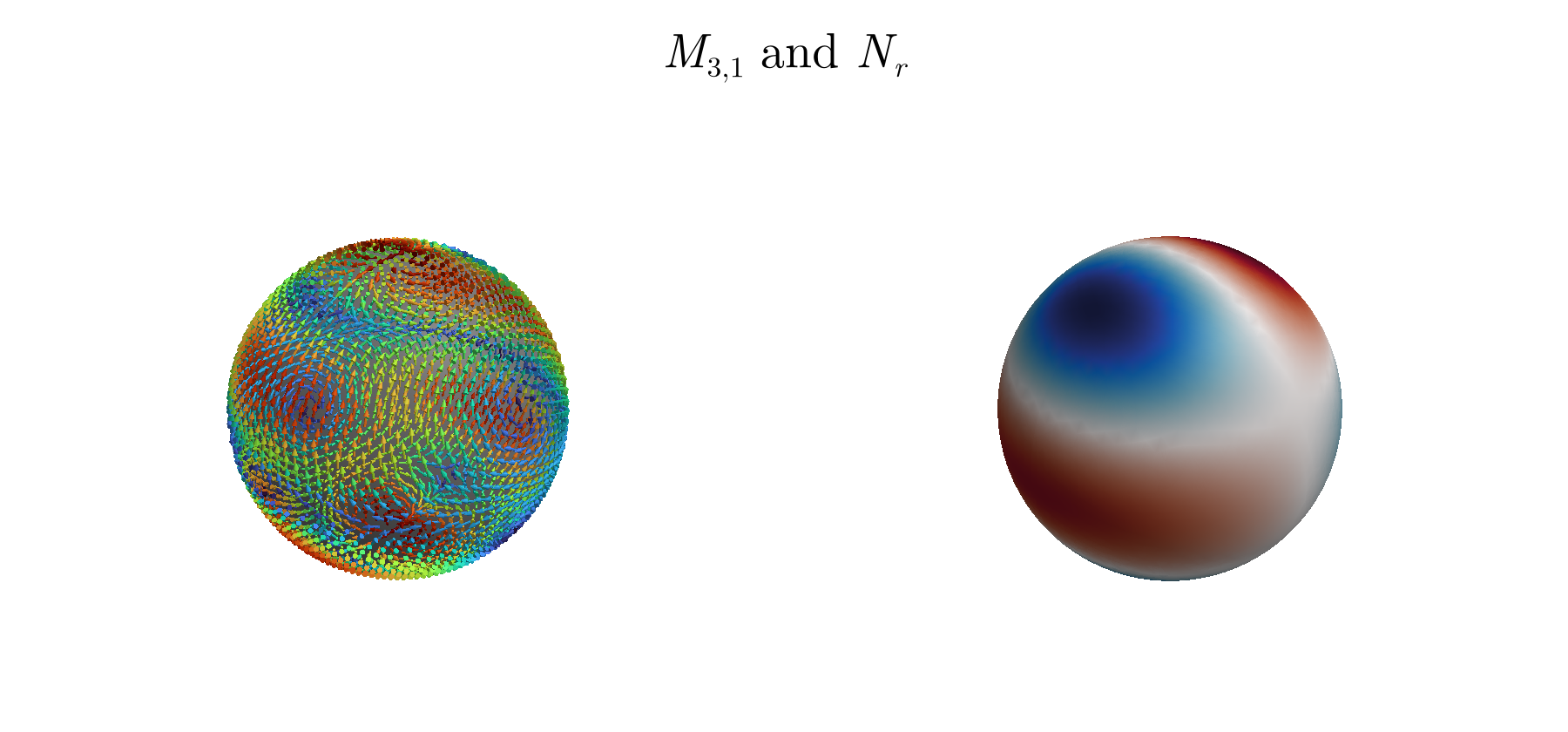

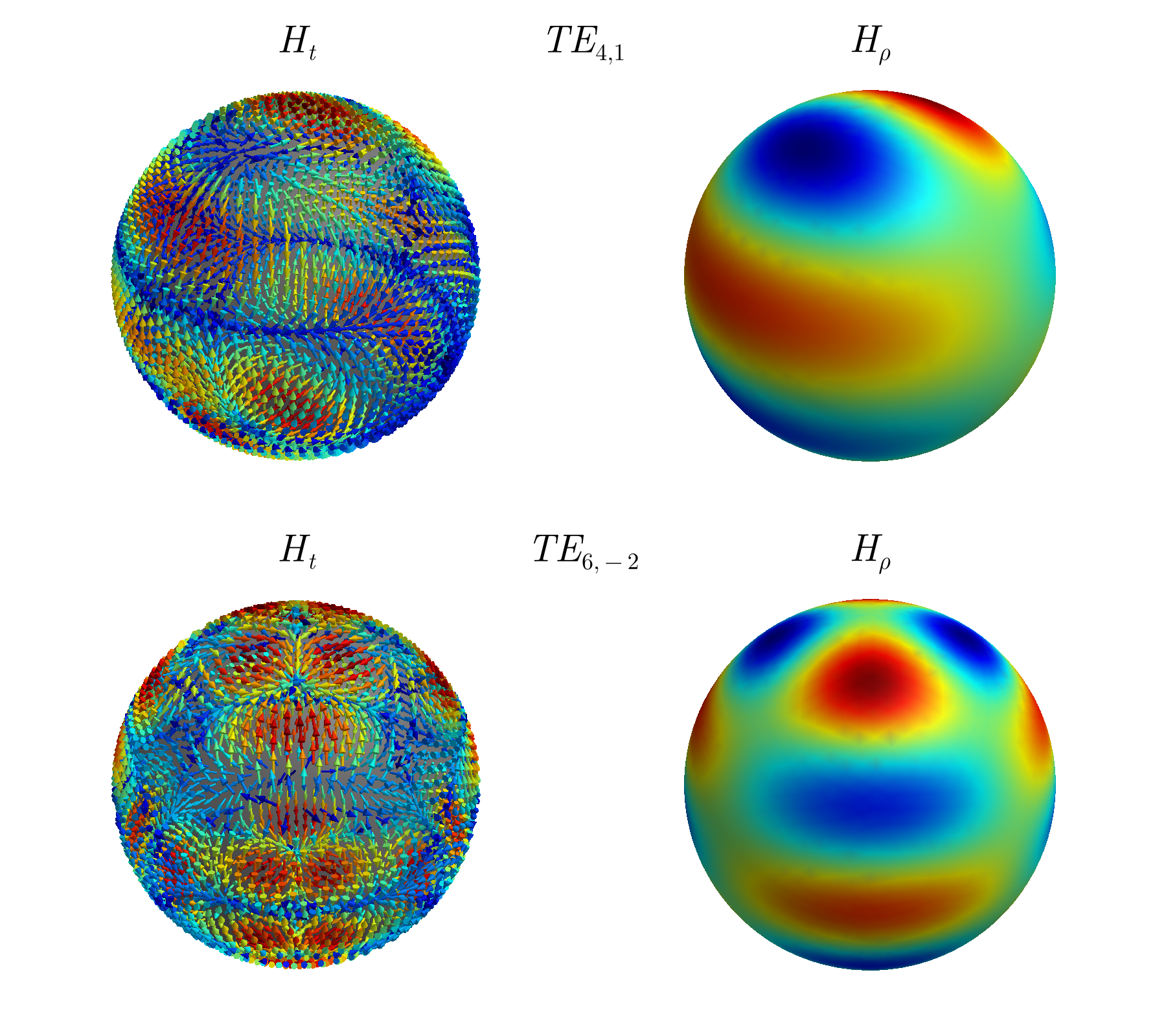

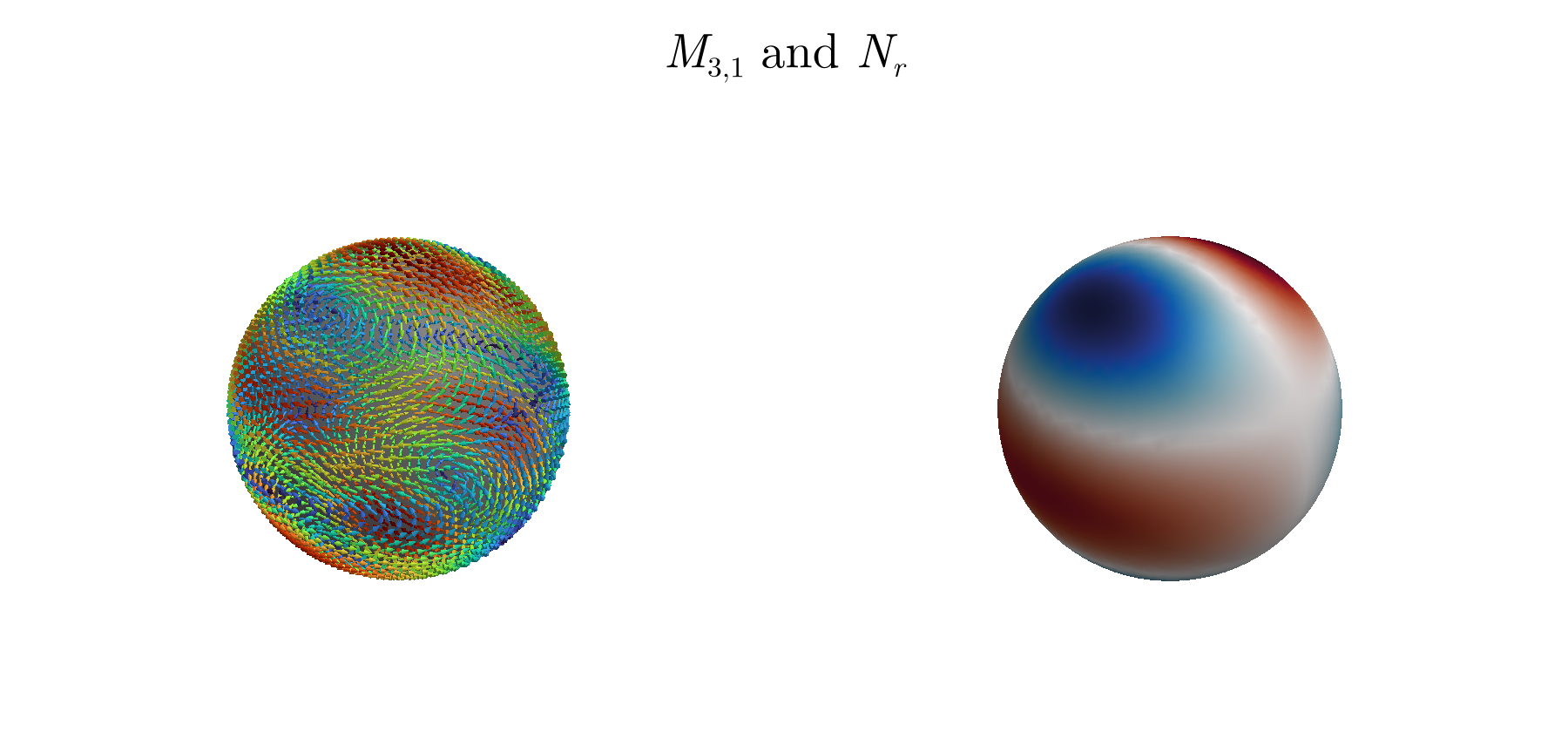

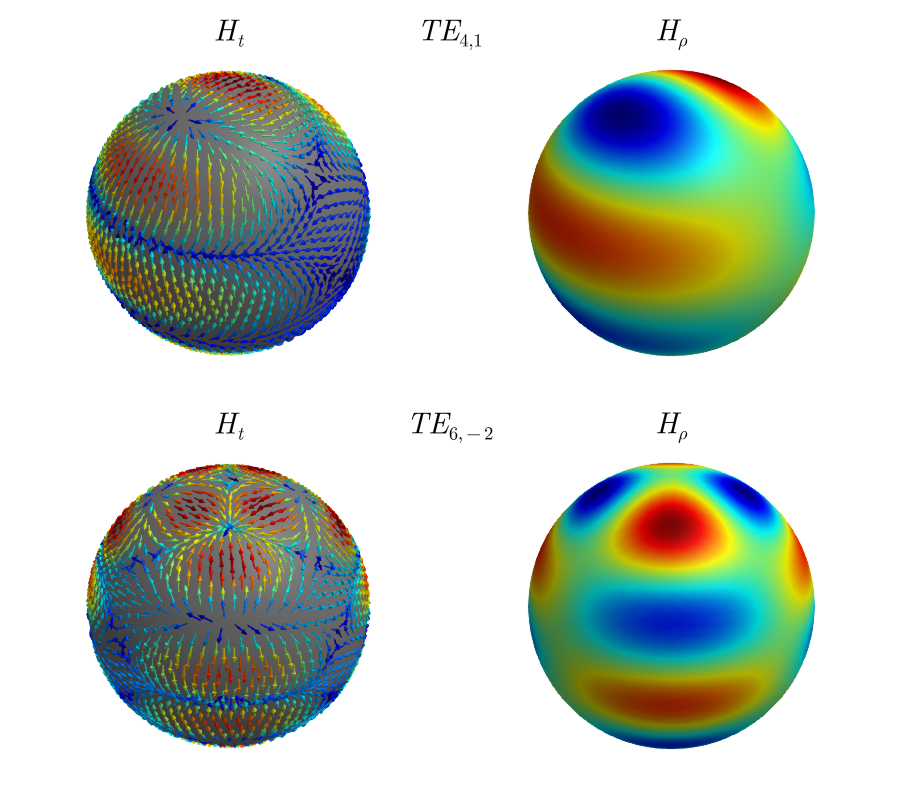

lm_pairs = [(4, 1), (6, -2)]

plot_ids = Iterators.product(1:2, 1:1) |> collect |> vec

fig = Figure(size = (900, 800))
for (idj, (l, m)) in enumerate(lm_pairs)
    ii, jj = plot_ids[idj]
    #l, m = 3, 2
    idx = l^2 + l + m + 1

    mode = myfields[:,idx]
    E = map(mode, r_vec) do mi, ri
        E_r, E_θ, E_ϕ, H_r, H_θ, H_ϕ = mi
        r, θ, ϕ = AnalyticEMModes.cart2sph(ri...)
        spherical_to_cartesian_fields(0.0, E_θ, E_ϕ, 0.0, H_θ, H_ϕ, θ, ϕ)
    end

    Hx = map(x->real(x[4]), E)
    Hy = map(x->real(x[5]), E)
    Hz = map(x->real(x[6]), E)
    Hf = (map((x,y,z) -> hypot(x,y,z), Hx, Hy, Hz))
    Hx ./= Hf
    Hy ./= Hf
    Hz ./= Hf
    factor = 0.1

ga = fig[ii, jj] = GridLayout()
    Label(ga[0, 1:2], L"TE_{%$l,%$m}", fontsize = 30, tellwidth = false, padding = (0, 0, -170, 0))
    Label(ga[0, 1], L"H_t", fontsize = 30, tellwidth = false, padding = (0, 0, -170, 0))
    ax1 = LScene(ga[1,1], show_axis = false)
    mesh!(ax1, coords, conn, color = :gray)
    arrows3d!(ax1, xcoords, ycoords, zcoords, Hx*factor, Hy*factor, Hz*factor, color = Hf, colormap = :jet)
    Label(ga[0,2], L"H_\rho", fontsize = 30, tellwidth = false, padding = (0, 0, -170, 0))
    ax2 = LScene(ga[1,2], show_axis = false)
    Hρ = map(x->real(x[4]), mode)
    mesh!(ax2, coords, conn, color = real.(Hρ), colormap = :jet)
    rotate_cam!(ax2.scene, Vec3f(0, 0.0, 0.0))
    rotate_cam!(ax1.scene, Vec3f(0, 0.0, 0.0))
end
fig
